317ClientFalador

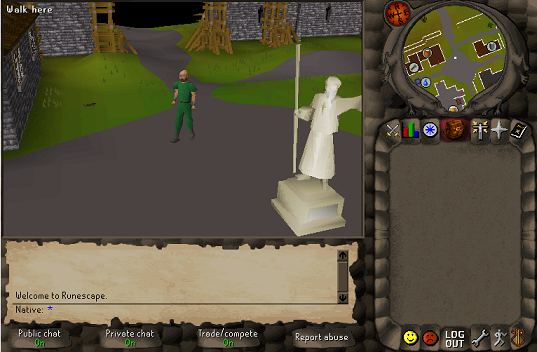

A photo from the 317 revision.



Packet structure Edit

When the client sends a packet to the server, the first byte encapsulates its opcode. This specific opcode is encrypted with a value generated by the ISAAC PRNG seeded with a dynamically server generated key during the login block. The server decrypts it and associates the opcode to the packet's respective predefined size. If the packet does not contain a fixed size, the opcode will be followed by either a byte or a word - varying per packet - for its proper size. This is then followed by the payload.

Login Protocol Overview Edit

Every connection to the main 'gateway' server sends a single byte of data, mostly well known as the connection type. The connection type tells the main server which type of connection you wish to initiate. The old engine list consists of:

  • Login request - connection type 14
  • Update - connection type 15
  • New connection login - connection type 16
  • Reconnecting login - connection type 18

The connection type we will cover in the following paragraphs is the login connection type, 14. After the login handshake initiating connection type, the client writes a small bit of data derived from the logging in player's username. This is believed to help select the appropriate login server. On successful handshake, the server sends back 8 ignored bytes.

long l = TextUtils.encodeAsBase37Integer(username);
int i = (int) (l >> 16 & 31L);
out.offset = 0;
out.writeByte(14); // Initiate connection type
out.writeByte(i); // "small bit of data derived from... player's username"
in.queueBytes(2, out.payload);
for (int j = 0; j < 8; j++) in.read();

At this point, the client reads in one byte, called the status code. The status code 0 is expected to start the login protocol correctly. If the status code is 0, the client reads a long, dubbed by many as the server session key. This is used to help generate a unique seed for the client session's packet opcode masking. The client then stores two ints that are the upper and lower ints of the client session key, which has the same purpose as the server's key. The client then starts writing the login block, which is RSA encrypted.

The login block starts with the byte 10, which is considered a magic number. Following it is the client session key and server session key longs. After the session keys, the session's UID (unique identifier or user identifier) is written to the block. This is used to distinguish between multiple sessions. Trailing behind the UID comes the client's username and password written as modified C-strings that are rather terminated with a 10 byte than a NUL byte. This block is then RSA encrypted and stored for later use.

Now starts the login request packet. It starts off with a flag telling the server whether or not the client is reconnecting or connecting for the first time. The byte is 18 or 16, respectively. [NOW CLASSIFIED AS A CONNECTION TYPE] Following is the size of the rest of the login response packet, including the login block that trails at the end, to tip the server how much data it should expect. Later comes the magic number byte 255, and right behind it the client revision short. The packet is just about crafted completely. A flag byte that represents if the client is running in low memory or high memory modes is sent, and after the 9 CRC32 checksums of the file system 0 basic archives (this includes versionlist, media, config, etc.). To top it off, the RSA encrypted login block is appended to the end and the packet is sent to the server.

The ISAAC ciphers are seeded for packet opcode masking after adding 50 to each int of the session keys, and the status code is reread. This finishes the login protocol.

Login Protocol Breakdown Edit

The login is comprised of four stages in which the client and server switch in regards to which one is reading and which one is writing.

Variables:Edit

The login process has a lot of variable data, compiled here is a list of the variables and their different values.

Name HashEdit

A hash of the player name, thought to be used to select an appropriate login server. This has no use in current private servers.

Server Session KeyEdit

The server-session-key is one of two ciphers used to encrypt the game protocol, using the ISAAC algorithms.

"Data File Version"Edit

The CRC checks for the cache files.

User IDEdit

The ID of the user.

UsernameEdit

The username of the player, used to identify their account.

PasswordEdit

The password of the player account, used so only they can log into their account.

Client Session KeyEdit

The client-session-key is one of two ciphers used to encrypt the game protocol, using the ISAAC algorithms.

Connect StatusEdit

The status of the connection.

Value Status
16 Signifies that the connection is new.
18 Signifies that the session is reconnecting a previously lost connection.

SizeEdit

The size of the unencrypted login packet, used to determine how many bytes need to be read from the stream by the server.

Client VersionEdit

The memory-version of the game client.

Value Status
0 Signifies the client is a low-memory client.
1 Signifies that the client is a high-memory client.

CRC ValuesEdit

9 4-byte values, Each containing the CRC of their respective cache files. Used by the server to verify client is up to date.

Player StatusEdit

The in-game player status - player, player moderator, or administrator.

Value Status
0 Signifies that this player is a normal player.
1 Signifies that this player is a player moderator.
2 Signifies that this player is an administrator.

FlaggedEdit

If set to 1, information about mouse movements etc. are sent to the server. Suspected bot accounts are flagged.

Response CodesEdit

At the beginning and end of the login procedure, we send different values to the client to allow or deny a login. The various values show different messages on the login box on the client or do something internally.

Value Response
-1 Waits for 2000ms and tries again while counting failures.
0 Exchanges session keys, player name, password, etc.
1 Waits for 2000ms and tries again.
2 Client made a successful login.
3 "Invalid username or password."
4 "Your account has been disabled. Please check your message-center for details."
5 "Your account is already logged in. Try again in 60 secs..."
6 "RuneScape has been updated! Please reload this page."
7 "This world is full. Please use a different world."
8 "Unable to connect. Login server offline."
9 "Login limit exceeded. Too many connections from your address."
10 "Unable to connect. Bad session id."
11 "Login server rejected session. Please try again."
12 "You need a members account to login to this world. Please subscribe, or use a different world."
13 "Could not complete login. Please try using a different world."
14 "The server is being updated. Please wait 1 minute and try again."
15 See the notes below.
16 "Login attempts exceeded. Please wait 1 minute and try again."
17 "You are standing in a members-only area. To play on this world move to a free area first."
20 "Invalid loginserver requested. Please try using a different world."
21 "You have only just left another world. Your profile will be transferred in: (number) seconds."
None of the above "Unexpected server response. Please try using a different world."

Regarding response code 15 Edit

On the server, players are not unregistered for quite some time. This can be best witnessed when the client forcefully closes the connection while in combat. If you're quick enough before the player dies or kills the NPC, login attempts during that time return that the account is already logged in. This probably explains why the message says "try again in 60 seconds", and they just reused the response when the player is truly logged in.

Going along with this "players aren't offline yet" idea, when the client experiences some lag and performs a reconnect, it sends byte 18 as it's connection type to the server.

The server most likely saves this as a boolean (reconnect = var == 18;). When the login is entirely validated, meaning the password's are okay and the server isn't full, it can either send back the normal response, 2, or 15.

But why 15? If you look at the client code, you'll see that the chat messages aren't cleared. If you've ever had a poor connection you've noticed that your chat stays there upon a reconnect, and this is exactly why. When you implement response code 15 though, you do NOT need to send the "player status" or the "flagged" bytes.

Login Process:Edit

Stage 1: Client -> ServerEdit

Data Type Value
ubyte 14
ubyte "name hash"


Stage 2: Server -> ClientEdit

Data Type Value
byte 0
byte 0
byte 0
byte 0
byte 0
byte 0
byte 0
byte 0
byte "response code"
long "server session key"


Stage 3: Client -> ServerEdit

Data Type Value
byte "connect status"
byte "size"
byte 255
short 317
byte "client version"
int "crc values"[0]
int "crc values"[1]
int "crc values"[2]
int "crc values"[3]
int "crc values"[4]
int "crc values"[5]
int "crc values"[6]
int "crc values"[7]
int "crc values"[8]
byte 10
long "client session key"
long "server session key"
int "user id"
RS String "username"
RS String "password"


Stage 4: Server -> ClientEdit

Data Type Value
byte "response code"
byte "player status"
byte "flagged"


Player Updating Edit

The player updating process consists of 4 parts:

  • a) Our player movement updates
  • b) Other player movement updates
  • c) Player list updating
    • a) Apperance updating
    • b) Location updating
  • d) Player update block flag-based updates

Our player movement updates

The client begins by reading 1 bit. This bit tells the client whether or not it is currently updating 'our player', or the player the client is controlling. If it's not updating our player, it exits and goes onto step b. If it is, it then reads 2 bits. The value is called the movement update type. There are 4 recognized movement update types:

  • Type 0 basically tells the client there is nothing to update for our player, just add its index to the local updating list.
  • Type 1 tells the client you moved in one direction. The client reads 3 bits, which represents the direction you moved in, and then 1 bit, which states whether further update is required. If so, it adds it to the updating list. This is used in walking.
  • Type 2 functions in much of the same way as its previous, only this time it reads two 3 bit values. The first represents the player's last direction, and the second it's current direction. Trailing behind it is also the 1 bit 'update required' flag as type 1. This is used in running.
  • Type 3 on the other hand is different. It reads in 2 bits which represents our player's plane, or its level of height, in the game world.

Only 0-3 inclusive are appropriate planes supported by the client. It then reads 1 bit, which describes whether or not to clear the awaiting-waypoint queue, basically to stop client from further queued stepping, such as used in teleporting. After this, it reads the 'update required' bit, and checks to see if further update is required. Directly after, it reads two 7 bit quantities, representing the new relative X and relative Y coordinates of our player to our current map region's origin. It then sets our players position to the plane, x, and y positions as told to.


Other player movement updates

The client begins by reading an 8 bit value telling the client how many players there are to update. It then enters a loop for each player there is to update.

Inside this loop, the client reads 1 bit. This is the movement update required flag. If the flag is 0, it sets the current updating player's last update cycle time to the current game logic loop cycle time, and adds the player to the local player list. If the flag is not 0, it then reads the movement update type, which is a 2 bit quantity. The following known types are:

  • 0, the client updates the current player's last update cycle time, adds the current player to the local player list, and adds it to the updating list.
  • 1, the client updates the current player's last update cycle time and adds the current player to the local player list as well, but also reads in 3 bit quantity. This represents the current player's direction it walked to. It then reads the a 1 bit value that specifies whether or not to add the player to the updating list.
  • 2, the client does the exact same thing as the type 2 update, except it reads in two of the 3 bit quantities. The first represents the current player's last direction, and the second its current direction running.
  • 3, it only adds the player to the needing-update list, or so believed. Type 3 is not well known.


Player list updating

The next step in the player updating procedure is the player list updating, or where the client recieves data on every player in its local list, such as appearance and location relative to ours. The client loops through a process for each player in the updating.

The client reads an 11 bit quantity from the buffer, which is the next player in the updated list to be informed about. The clietn then checks if it has a cached buffer for that player's updating, and if it does, it updates the player appearance.


Appearance updating

Appearance updating starts off by first reading an unsigned byte that represents the current player's gender. Then it reads another unsigned byte that represents the player's over-head icon id. This is used with prayer icons above heads. Next, a loop occurs 12 times to read equipment data.

In the loop, the client reads an unsigned byte that is the equipment slot's item id high byte. If it is 0, the player's equpment slot has no item. If it is not 0, another unsigned byte is read the merged with the previous to create the equipment's item id. If the id is 65535 (written as a -1 signed short), then the player's appearance is that of an NPC. The client reads in an unsigned short representing the NPC's id and sets the player's definition to that NPC's.

After the equipment loop, it loops 5 times, once for each type of coloured body part. In each loop, the client reads an unsigned short and assigns it as the color of the current loop idx (which represents the body part).

Finally, after the color loop, the client reads 7 unsigned shorts representing animation indices; the animations belong to:

  • Standing still
  • Turning while standing
  • Walking
  • Turning around (backwards)
  • Turning a quarter-way clockwise
  • Turning a quarter-way counter clockwise
  • Running


After these animation indices are read, a long representing the player's name is read, an unsigned byte representing the combat level, and an unsigned short representing the players skill level (for things where players arent ranked by levels, such as where it states '<player name> (skill <skill>)' as an action menu text).


Location updating

After the appearance updating, the client starts to update that player's location relative to our player. The player is added to the local player list and it's last update cycle time. It then reads a 1 bit quantity that defines whether or not the client has a chunk in the player update block list. If it does, it adds it to the updating list. The next bit states whether or not to discard the awaiting-waypoint queue, such as when teleporting. It then reads to 5 bit values that determine the players relative X and Y coordinates to our player. The local player area is 16x16, so if the delta of the two coordinates is > 15, 32 is subtracted from it to signify the player is on the other side of ours. The client then sets the player's position, ending the player list updating process.


Update block flag-based updating

The following is what most people think of when they say 'update mask' and 'update flag'. This process of the updating procedure is very important. It begins with looping through ALL players in the local player update list, reading an unsigned byte which from now on will be called the update flag. All further updates are seen to be 'included' by comparing a bitwise mask to this flag. If the flag has the bits for 0x40 all on, this signifies that the flag was too large for a simple unsigned byte and reads in another unsigned byte, which it uses as the upper unsigned byte, therefore the update flag is an unsigned little-endian short. The client then passes off the data to a helper method which processes all updates this flag signifies.


Inside this method, many different bitwise masks are compared to the player's flag, and if the mask is set, logic is performed. These masks are frequently called update masks. A list of player update masks are below:

  • 0x400 The 0x400 mask is used to update the player so they appear to be asynchronously animating and walking. This mask is often used for the Agility skill. The data associated goes in order of: byte (type C) which is the first location's X coordinate value, byte (type S) which is the first location's Y coordinate value, byte (type S) which is the second location's X coordinate value, byte (type C) the second location's Y coordinate value. After the locations are written, there is a required movement speed which is written as a short which marks how fast to move from position 1 to position 2. Another short (type A) is written as the movement speed going from position 2 to position 1. Finally one byte is written to end the mask block, which marks the direction.


  • 0x100 The 0x100 mask is responsible for player graphics updating. The data associated is a little-endian unsigned short which represents the graphics id, and an int which is the graphics delay.


  • 0x8 Animations are handled by the 0x8 mask. The payload for this update is a little-endian unsigned short that is the animation id, and an unsigned inversed byte which states the animation's delay.


  • 0x4 The beloved 0x4 mask takes care of forced player text that is only displayed above the player's model. The only data associated with this is a jagex ASCII string with a terminator of 10.


  • 0x80 Unlike the previous, the 0x80 mask handles normal player chat text. The client will read a little-endian unsigned short which holds chat text attributes. It holds the text color and chat effects. Next, the client reads an unsigned byte which states the player's priveleges (normal player, player moderator, moderator, staff) to give the chatter's name a crown. Right behind it trails an unsigned inversed byte that gives chat text length in bytes. Trailing afterwards is dictionary-compressed chat text. All chat text characters become indexes into a valid character table and are written as nibbles (4 bit quantities).


  • 0x1 Updating the player's current interacting-entity is done via mask 0x1. The entity id is written as a little-endian unsigned short.


  • 0x10 The 0x10 mask updates appearance of the player in exact same way as in updating player list. Only difference is that appearance is updated from a set-sized buffer filled from the current buffer. An unsigned inversed byte is read first which describes appearance buffer size, and the buffer is filled.


  • 0x2 Facing coordinate updating is signified by the 0x2 mask. The player's facing-towards X and Y are set to read values; specifically, an unsigned lower-inverted short and little-endian unsigned short, respectively.


  • 0x20 Notifying client's of a player's health is done via the 0x20 mask. The hitpoint damage done to the player is sent as an unsigned byte, followed by the hit type as a positive inverted byte. The player's current and max health are read as an unsigned inverted byte and unsigned byte, respectively.


  • 0x200 The 0x200 mask acts in the same way as the 0x20 mask and is most likely associated with special attacks from weapons that have the ability to hit twice at the same time. Hitpoint damage is an unsigned byte, the hit type an unsigned inverted byte, and the current and maximum health being an unsigned byte and unsigned inverted byte, respectively.

After the client processes every single player in the update player list, it ends player updating.

Game ProtocolEdit

The game protocol is the in-game communication of player actions between the server and client.

Server -> Client PacketsEdit

Opcode Type Length (bytes) Name Description
1 FIXED 0 Animation reset Resets all animations in the immediate area.
4 FIXED 7 Send still graphic Sends a still graphic to the client.
24 FIXED 1 Flash sidebar Causes a sidebar icon to start flashing.
34 FIXED 32 Send update item Updates an item on an interface.
35 FIXED 4 Camera shake Causes the camera to shake.
44 FIXED 6 Send ground item Sends an item which will be displayed on the ground.
50 FIXED 9 Send add friend Sends a friend to the friend list.
53 FIXED 2048 Send update items Updates more than one item on an interface.
68 FIXED 0 Reset button state Resets the button state for all buttons.
70 FIXED 6 Interface offset Sets the offset for drawing of an interface.
71 FIXED 3 Send sidebar interface Assigns an interface to one of the tabs in the game sidebar.
72 FIXED 2 Clear inventory Clears an interface's inventory.
73 FIXED 4 Load map region Loads a new map region.
74 FIXED 3 Play song Instructs the client to play a song.
75 FIXED 5 Send Npc Head Sends the dialogue head of an npc on an interface.
79 FIXED 4 Scroll position Sets the scrollbar position of an interface.
85 FIXED 3 Send position Sends the coordinates of the player.
97 FIXED 2 Show interface Displays a normal interface.
99 FIXED 1 Minimap State Sets the mini map's state.
104 VARIABLE_BYTE N/A Send player option Sends a player option (when a player is right clicked, i.e. "Follow").
107 FIXED 0 Reset camera Resets the camera position.
109 FIXED 0 Logout Disconnects the client from the server.
110 FIXED 1 Run energy Sends the players run energy level.
114 FIXED 2 System update Sends how many seconds until a 'System Update.'
122 FIXED 4 Interface color Changes the color of an interface.
126 VARIABLE_SHORT N/A Set interface text Attaches text to an interface.
135 FIXED 6 Skill level Sends a skill level to the client.
151 FIXED 5 Send object Sends an object to the client.
156 FIXED 4 Remove ground item Removes an item from the ground.
164 FIXED 2 Chat interface Shows an interface in the chat box.
174 FIXED 6 Send sound Instructs the client to play a sound.
176 FIXED 10 Open welcome screen Displays the welcome screen.
185 FIXED 5 Send player head Sends the players dialogue head on an interface.
196 VARIABLE_BYTE N/A Send private message Sends a private message to another player.
200 FIXED 4 Interface animation Sets an interface's model animation.
206 FIXED 3 Chat settings Sends the chat privacy settings.
208 FIXED 2 Walkable interface Displays an interface in walkable mode.
214 VARIABLE_SHORT N/A Send add ignore Sends a ignored player to the ignore list.
219 FIXED 0 Clear screen Clears the screen of all open interfaces.
221 FIXED 1 Friends list status Friends list load status.
230 FIXED 8 Interface model rotation Sets an interface's model rotation and zoom
240 FIXED 2 Weight Sends the players weight.
241 VARIABLE_SHORT N/A Construct map region Constructs a dynamic map region using a palette of 8*8 tiles.
246 FIXED 6 Interface item Displays an item model inside an interface.
248 FIXED 4 Inventory overlay Displays an interface over the sidebar area.
249 FIXED 3 Initialize player Sends the player's membership status and their current index on the server's player list.
253 VARIABLE_BYTE N/A Send message Sends a server message (e.g. 'Welcome to RuneScape') or trade/duel request.


Client -> Server PacketsEdit

Opcode Type Length (bytes) Name Description
0 FIXED 0 Idle Sent when there are no actions being performed by the player for this cycle.
3 FIXED 1 Focus change Sent when the game client window goes out of focus.
4 VARIABLE BYTE N/A Chat Sent when the player enters a chat message.
14 FIXED 8 Item on player Sent when a player uses an item on another player.
16 FIXED 1 Alternate item option 2 Sent when a player uses an item. This is an alternate item option.
17 FIXED 2 NPC action 2 Sent when a player clicks the second option of an NPC.
21 FIXED 2 NPC action 3 Sent when a player clicks the third option of an NPC.
25 FIXED 10 Item on floor Sent when a player uses an item on another item thats on the floor.
39 FIXED 2 Follow Sent when a player clicks the follow option on another player.
40 FIXED N/A NpcDialogue N/A
41 FIXED 6 Equip item Sent when a player equips an item.
43 FIXED 6 Bank 10 items Sent when a player banks 10 of a certain item.
53 FIXED 4 Item on item Sent when a player uses an item with another item.
70 FIXED 6 Object action 3 Sent when the player clicks the third action available for an object.
72 FIXED 2 Attack (NPC) Sent when a player attacks an NPC.
73 FIXED 2 Trade request Sent when a player requests a trade with another player.
74 FIXED 8 Remove ignore Sent when a player removes a player from their ignore list.
79 FIXED 6 Light item Sent when a player attempts to light logs on fire.
86 FIXED 4 Camera movement Sent when the player moves the camera.
87 FIXED 6 Drop item Sent when a player wants to drop an item onto the ground.
95 FIXED 3 Privacy options Sent when a player changes their privacy options (i.e. public chat).
98 VARIABLE_BYTE N/A Walk on command Sent when the player should walk somewhere according to a certain action performed, such as clicking an object.
101 FIXED 13 Design screen Sent when a player is choosing their character design options.
103 VARIABLE_BYTE N/A Player command Sent when the player enters a command in the chat box (e.g. "::command")
117 FIXED 6 Bank 5 items Sent when a player banks 5 of a certain item.
121 FIXED 0 Loading finished Sent when the client finishes loading a map region.
122 FIXED 6 Item action 1 Sent when the player clicks the first option of an item, such as "Bury" for bones.
126 VARIABLE BYTE N/A Private message Sent when a player sends a private message to another player.
129 FIXED 6 Bank all items Sent when a player banks all of a certain item that they have in their inventory.
130 FIXED 0 Close window Sent when a player presses the close, exit or cancel button on an interface.
132 FIXED 6 Object action 1 Sent when the player clicks the first option of an object, such as "Cut" for trees.
133 FIXED 8 Add ignore Sent when a player adds a player to their ignore list.
135 FIXED 6 Bank X items part-1 Sent when a player requests to bank an X amount of items.
139 FIXED 2 Trade answer Sent when a player answers a trade request from another player.
145 FIXED 6 Unequip item Sent when a player unequips an item.
155 FIXED 2 NPC action 1 Sent when a player clicks first option of an NPC, such as "Talk."
164 VARIABLE_BYTE N/A Regular walk Sent when the player walks regularly.
185 FIXED 2 Button click Sent when a player clicks an in-game button.
188 FIXED 8 Add friend Sent when a player adds a friend to their friend list.
192 FIXED 12 Item on object Sent when a a player uses an item on an object.
202 FIXED 0 Idle logout Sent when the player has become idle and should be logged out.
208 FIXED 4 Bank X items part-2 Sent when a player enters an X amount of items they want to bank.
210 FIXED 0 Region change Sent when a player enters a new map region.
214 FIXED 7 Move item Sent when a player moves an item from one slot to another.
215 FIXED 8 Remove friend Sent when a player removes a friend from their friend list.
218 FIXED 8 Report player Sent when a player reports another player.
236 FIXED 6 Pickup ground item Sent when the player picks up an item from the ground.
237 FIXED 8 Magic on items Sent when a player casts magic on the items in their inventory.
241 FIXED 4 Mouse click Sent when the player clicks somewhere on the game screen.
248 VARIABLE_BYTE N/A Map walk Sent when the player walks using the map. Has 14 additional (assumed to be anticheat) bytes added to the end of it that are ignored.
249 FIXED 4 Magic on player Sent when a player attempts to cast magic on another player.
252 FIXED 6 Object action 2 Sent when the player clicks the second option available for an object.
253 FIXED 6 Ground Item Action Sent when the player clicks the first option for a ground item (I.E. 'Light Logs')

Ad blocker interference detected!


Wikia is a free-to-use site that makes money from advertising. We have a modified experience for viewers using ad blockers

Wikia is not accessible if you’ve made further modifications. Remove the custom ad blocker rule(s) and the page will load as expected.
